PA6310 S-Type Load Cell
The PA6310 S-Type Load Cell is an aluminium load cell designed for accurate tension and compression weighing applications. It offers C3 accuracy, IP67 protection, and capacity options from 5kg to 250kg.
- Description
- Product Specifications
- Additional information
Description
The PA6310 S-Type Load Cell is suitable for weighing systems that require reliable force measurement in compact installations. Its S-type design makes it useful for hanging scales, hopper weighing, tensile testing, and other tension or compression applications.
Available as PA6310 and PA6310A, this load cell offers stable output, aluminium construction, shielded wiring, and overload protection for commercial and industrial weighing systems.
Key Features
- S-type load cell design
- Aluminium construction
- Capacity options from 5kg to 250kg
- C3 accuracy class
- IP67 environmental protection
- Suitable for tension and compression weighing
- 150% safe overload capacity
- 300% ultimate overload capacity
- 4-colour shielded cable
- Available in PA6310 and PA6310A versions
Applications
- Hanging scales
- Hopper weighing systems
- Force measurement
- Tensile and compression testing
- Industrial weighing systems

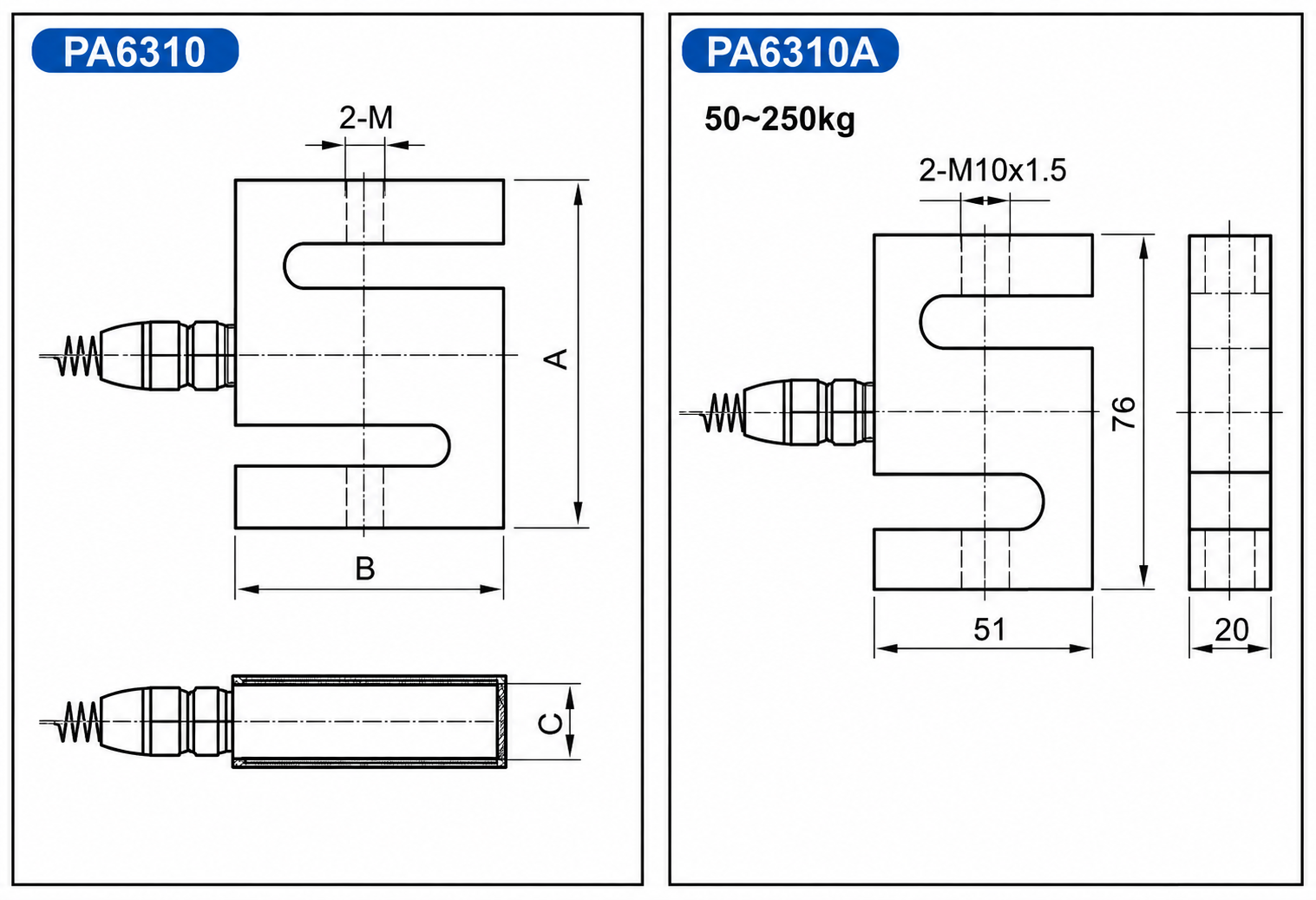

| Capacity | A | B | C | Thread |
|---|---|---|---|---|
| 5 to 20 kg | 63.5mm | 50.8mm | 12.70mm | M6 × 1-6H |
| 25 to 50 kg | 63.5mm | 50.8mm | 12.70mm | M8 × 1-6H |
| 60 to 250 kg | 76.2mm | 50.8mm | 25.4mm | M12 × 1.75-6H |
Additional information
| Model | PA6310, PA6310A |
|---|---|
| Capacity | 5 to 20kg, 25 to 50kg, 60 to 250kg |
