PA6180 Load Cell

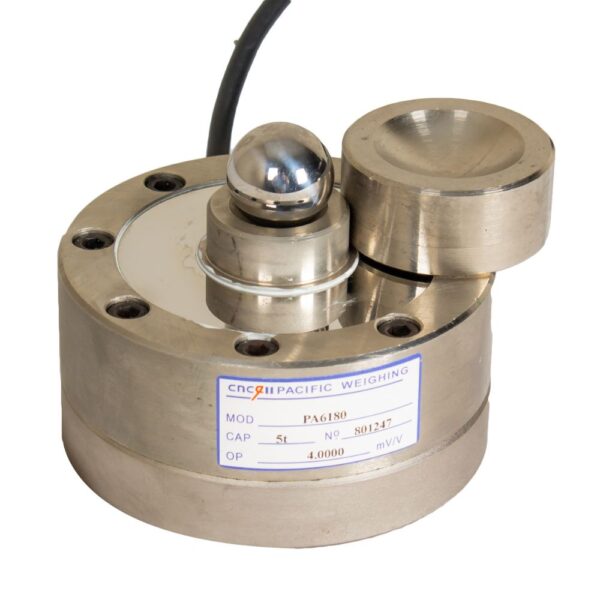

The PA6180 with Ball and Cup is a heavy-duty compression load cell designed for high-capacity weighing applications. It offers alloy tool steel construction, IP67 protection, and capacities from 5klb to 50t.
- Description
- Product Specifications
- Additional information
Description
The PA6180 with Ball and Cup is designed for heavy-duty weighing systems where stable compression measurement is required. It is suitable for weighbridges, tank weighing, silo weighing, and other industrial applications that need strong load support and reliable performance.
Built from alloy tool steel, the PA6180 offers IP67 environmental protection, 4.0mV/V rated output, safe overload protection, and a 4-colour shielded cable for straightforward installation.
Key Features
- Heavy-duty compression load cell
- Supplied with ball and cup arrangement
- Alloy tool steel construction
- IP67 environmental protection
- Rated output of 4.0mV/V ± 0.25%
- Safe overload up to 150% F.S
- Ultimate overload up to 250% F.S
- Suitable for high-capacity weighing systems
- 4-colour shielded cable included
- Standard capacities from 2.5 t to 50 t
Applications
- Weighbridges
- Silo weighing systems
- Tank weighing systems
- Hopper weighing systems
- Heavy industrial weighing

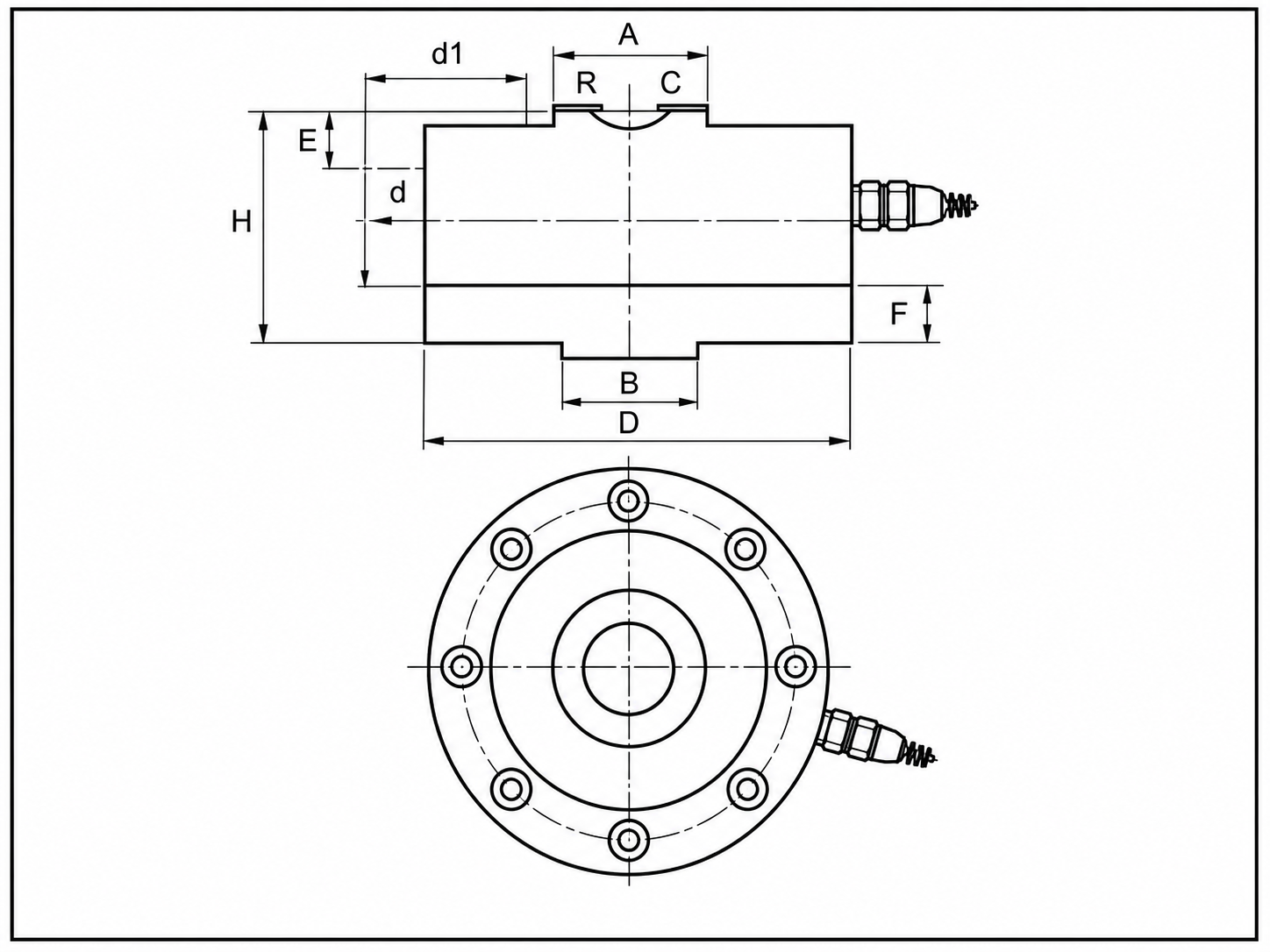

| Capacity | A | B | C | D | E | H | F | R | Ø | d | d1 | h |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 5, 10klb | 1.34 | 1.25 | 0.20 | 4.12 | 0.28 | 1.75 | 0.75 | 0.64 | 3.50 | 0.28 | 0.41 | 0.04 |
| 25, 50klb | 1.60 | 1.25 | 0.30 | 4.75 | 0.38 | 2.12 | 0.94 | 0.88 | 4.00 | 0.34 | 0.51 | 0.04 |
| 100klb | 2.00 | 1.25 | 0.30 | 5.50 | 0.40 | 2.25 | 1.14 | 0.88 | 4.60 | 0.41 | 0.63 | 0.04 |
| 2.5, 5t | 34.0 | 31.8 | 5.0 | 104.6 | 7.1 | 44.5 | 19.1 | 16.2 | 88.9 | 7.1 | 10.3 | 1.0 |
| 10, 25 t | 40.6 | 31.8 | 7.6 | 120.7 | 9.7 | 53.8 | 23.9 | 22.3 | 101.6 | 8.7 | 13 | 1.0 |
| 50t | 50.8 | 31.8 | 7.6 | 139.7 | 10.2 | 57.2 | 29 | 22.3 | 116.8 | 10.3 | 15.9 | 1.0 |
| Load Cell Type | Compression load cell with ball and cup |
|---|---|
| Material | Alloy tool steel |
| Rated Output | 4.0mV/V ± 0.25% |
| Accuracy Class | 0.05 |
| Environmental Protection | IP67 |
| Safe Overload | 150% F.S |
| Ultimate Overload | 250% F.S |
| Excitation Voltage | 10V AC/DC |
| Maximum Excitation Voltage | 15V AC/DC |
| Operating Temperature | -40°C to 65°C |
Additional information
| Capacity | 5, 10klb, 25, 50klb, 100klb, 2.5, 5t, 10, 25t, 50t |
|---|
