PA6348 Single Point Load Cell
The PA6348 Single Point Load Cell is an aluminium load cell designed for platform scale and bench scale applications. It offers IP67 environmental protection, reliable weighing performance, and a wide range of capacity options.
- Description
- Product Specifications
- Additional information
Description
The PA6348 Single Point Load Cell is suitable for weighing systems that require stable and accurate load measurement across platform and bench scale setups. Its single point design makes it ideal for applications where off-centre loading may occur on a weighing platform.
Built from aluminium and rated to IP67, the PA6348 is designed for dependable use in commercial and industrial weighing environments. It includes a 4-colour shielded cable and clear wiring configuration for straightforward installation.
Key Features
- Single point load cell design
- Aluminium construction
- IP67 environmental protection
- Rated output of 2.0 mV/V ±10%
- Accuracy class 0.03 / C3
- Safe overload up to 150% F.S
- Ultimate overload up to 300% F.S
- Suitable for platform scales
- 4-colour shielded cable included
- Available in multiple capacity options
Applications
- Platform scales
- Bench scales
- Packing scales
- Check weighing systems
- Industrial weighing equipment

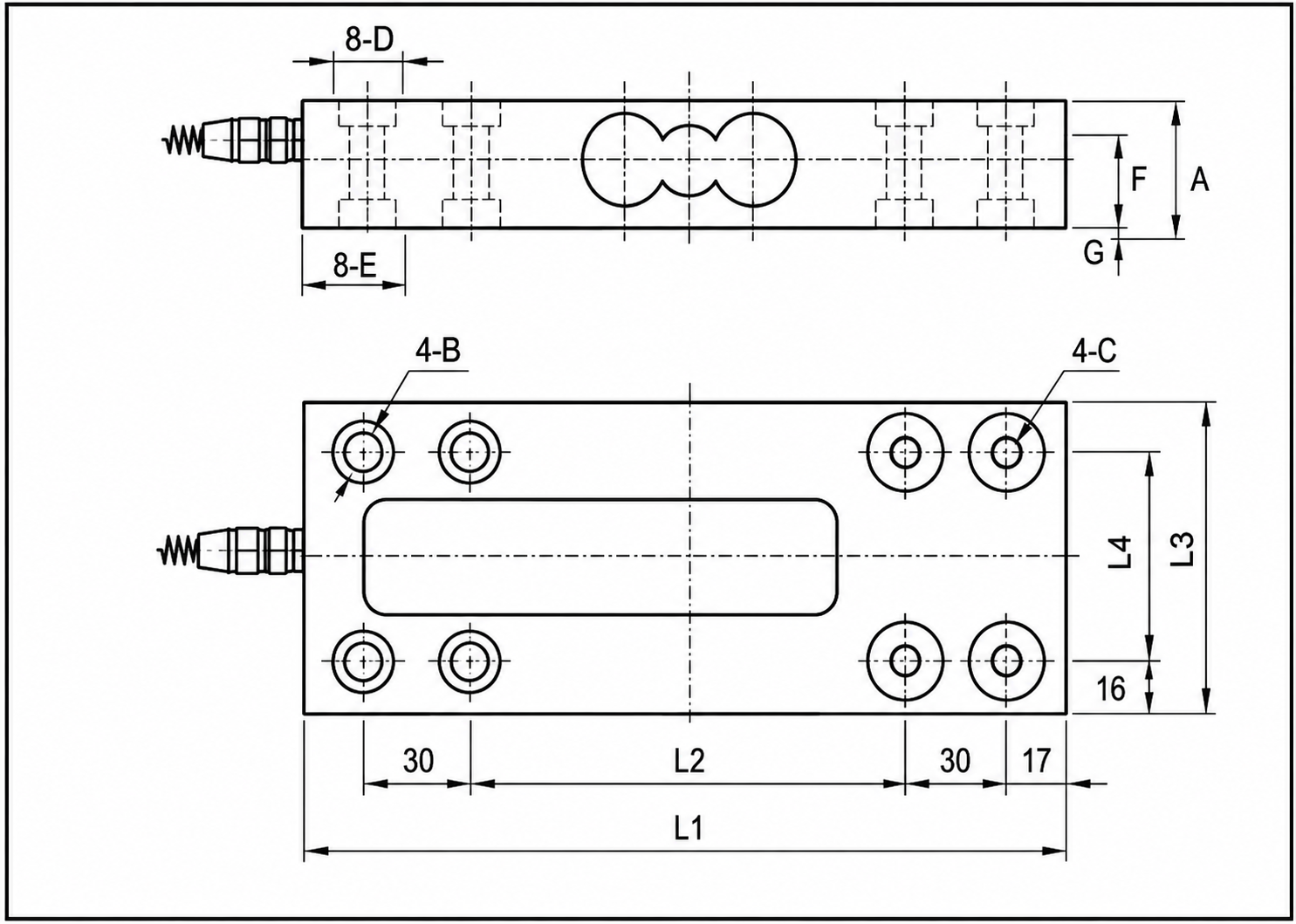

| Capacity | A | B | C | D | E | F | G | L1 | L2 | L3 | L4 |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 50kg, 100kg | 25 | φ9 | M18 | φ18 | φ18 | 8 | 8 | 200 | 110 | 80 | 56 |
| 150kg | 27 | φ11 | M10 | φ18 | φ27 | 8 | 8 | 220 | 126 | 98 | 66 |
| 300kg | 31 | φ11 | M10 | φ18 | φ27 | 8 | 8 | 220 | 126 | 98 | 66 |
| 500kg | 36 | φ11 | M10 | φ18 | φ27 | 8 | 8 | 220 | 126 | 98 | 66 |
| 1000kg, 1200kg | 47 | φ13 | M12 | φ22 | φ27 | 10 | 10 | 220 | 126 | 98 | 66 |
| Load Cell Type | Single point load cell |
|---|---|
| Material | Aluminium |
| Rated Output | 2.0 mV/V ±10% |
| Accuracy Class | 0.03 / C3 |
| Environmental Protection | IP67 |
| Safe Overload | 150% F.S |
| Ultimate Overload | 300% F.S |
| Excitation Voltage | 10V AC/DC |
| Maximum Excitation Voltage | 15V AC/DC |
| Operating Temperature | -40°C to 65°C |
Additional information
| Capacity | 50kg, 100kg, 150kg, 300kg, 500kg, 1000kg, 1200kg |
|---|
