PA6181 Load Cell
The PA6181 Load Cell with Button is a heavy-duty compression load cell designed for high-capacity industrial weighing. It offers alloy tool steel construction, IP67 protection, and capacity options up to 50t.
- Description
- Product Specifications
- Additional information
Description

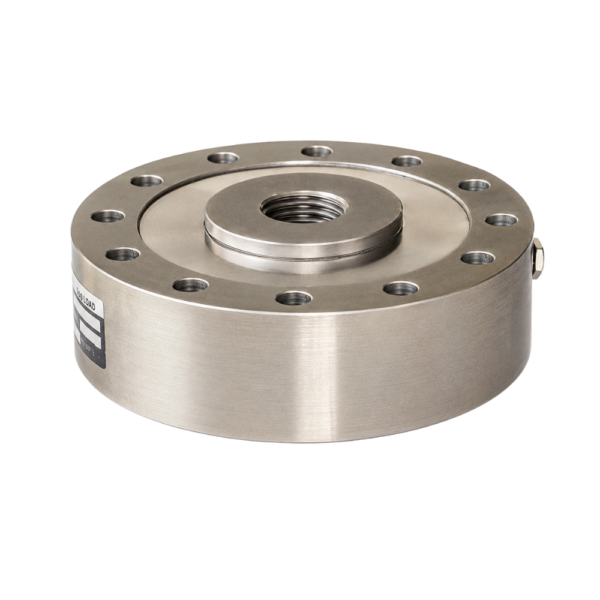

The PA6181 Load Cell with Button is designed for compression weighing applications where strength, stability, and durability are required. It is suitable for heavy-duty weighing systems such as silos, tanks, hoppers, and industrial platforms.
Built from alloy tool steel, the PA6181 includes IP67 environmental protection, safe overload protection, and a 4-colour shielded cable for straightforward installation. Its button-style loading design helps support accurate load transfer in demanding weighing setups.
Key Features
- Compression load cell with button design
- Alloy tool steel construction
- IP67 environmental protection
- Rated output of 3.00mV/V ± 0.1%
- Accuracy class 0.05
- Safe overload up to 150% F.S
- Ultimate overload up to 300% F.S
- Standard capacities from 0.25 t to 50 t
- 4-colour shielded cable included
- Suitable for heavy-duty industrial weighing
Applications
- Silo weighing systems
- Tank weighing systems
- Hopper weighing systems
- Industrial platform scales
- Heavy-duty process weighing
| Capacity | A | B | C | D | E |
|---|---|---|---|---|---|
| 250kg to 3t | 105 | 89 | 29 | M16 × 2.0 | 8 × Ø7.0 |
| 5t | 105 | 89 | 37 | M16 × 2.0 | 8 × Ø7.0 |
| 7.5t | 105 | 89 | 29 | M16 × 2.0 | 8 × Ø7.0 |
| 10t | 105 | 89 | 29 | M16 × 2.0 | 8 × Ø7.0 |
| 15t | 118 | 102 | 37 | M24 × 3.0 | 8 × Ø11 |
| 25t | 118 | 102 | 45 | M24 × 3.0 | 8 × Ø11 |
| 50t | 150 | 132 | 45 | M30 × 3.5 | 12 × Ø13 |
| 20t | 154 | 130 | 45 | M30 × 3.5 | 12 × Ø11 |
| Load Cell Type | Compression load cell with button |
|---|---|
| Material | Alloy tool steel |
| Rated Output | 3.00mV/V ± 0.1% |
| Accuracy Class | 0.05 |
| Environmental Protection | IP67 |
| Safe Overload | 150% F.S |
| Ultimate Overload | 300% F.S |
| Excitation Voltage | 10V AC/DC |
| Maximum Excitation Voltage | 15V AC/DC |
| Operating Temperature | -40°C to 65°C |
Additional information
| Capacity | 250kg to 3t, 5t, 7.5t, 10t, 15t, 25t, 50t |
|---|
