PA6139 Load Cell
The PA6139 Load Cell is an alloy tool steel load cell designed for high-capacity weighing applications from 2t to 10t. It offers IP67 protection, stable output, and reliable performance for industrial weighing systems.
- Description
- Product Specifications
- Additional information
Description
The PA6139 Load Cell is suitable for heavy-duty weighing applications that require accurate and stable load measurement. With capacities from 2 t to 10 t, it is ideal for platform scales, industrial weighing equipment, hopper systems, and other high-capacity weighing setups.
Built from alloy tool steel and protected to IP67, the PA6139 is designed for demanding environments. It includes safe overload protection, a 4-colour shielded cable, and standard wiring for easier installation.
Key Features
- Alloy tool steel construction
- IP67 environmental protection
- Standard capacities from 2 t to 10 t
- Rated output of 2.00 mV/V ± 0.1%
- Safe overload up to 150% F.S
- Ultimate overload up to 300% F.S
- Suitable for heavy-duty weighing systems
- 4-colour shielded cable included
- Stable and reliable load measurement
- Designed for industrial use
Applications
- Platform scales
- Hopper weighing systems
- Tank weighing systems
- Industrial weighing equipment
- Heavy-duty process weighing

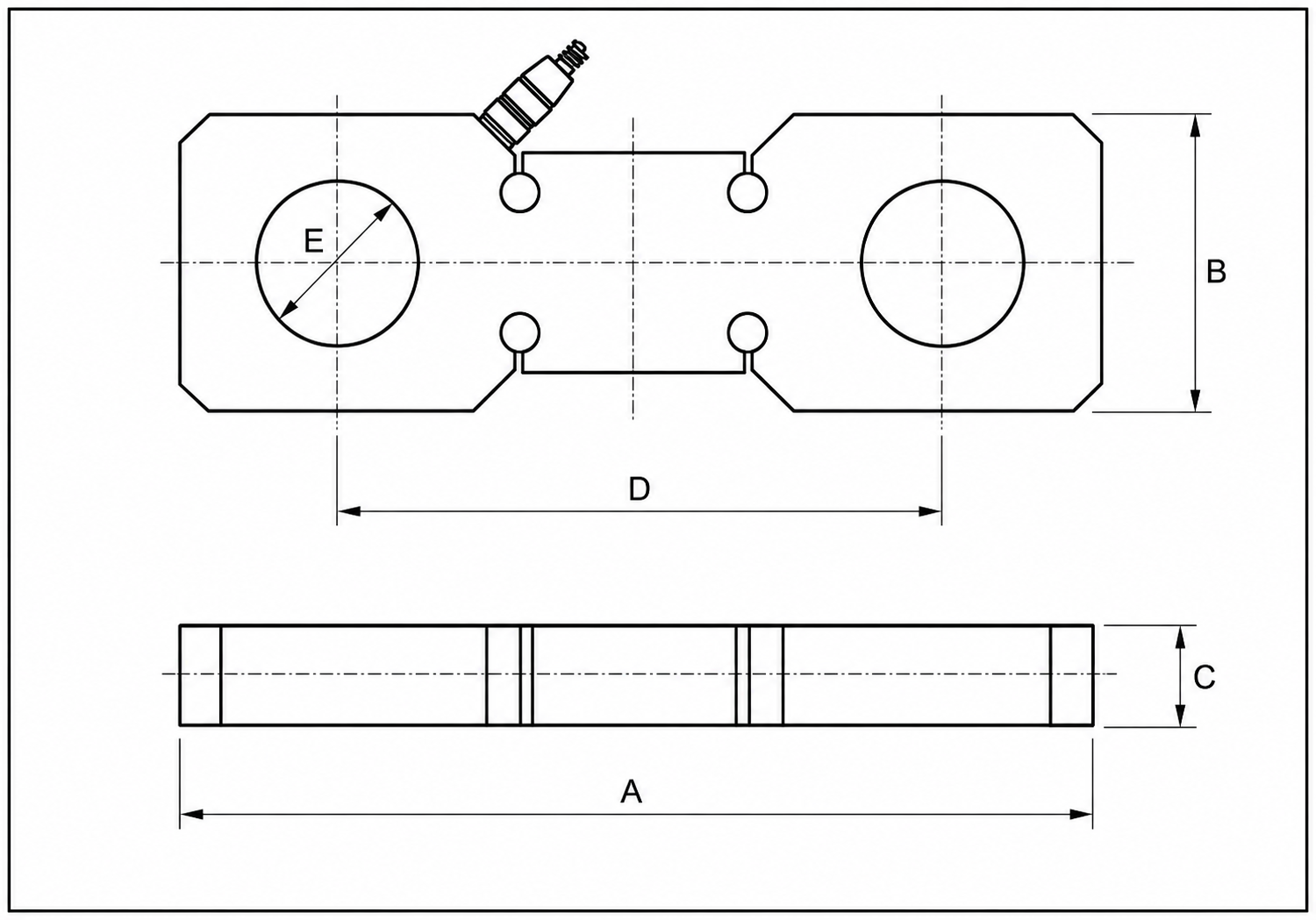

| Capacity | A | B | C | D | ØE |
|---|---|---|---|---|---|
| 2 t, 3t | 199 mm | 60 mm | 22 mm | 133 mm | Ø32 mm |
| 4t | 218 mm | 68 mm | 26 mm | 138 mm | Ø36 mm |
| 5t, 6t | 227 mm | 70 mm | 28 mm | 147 mm | Ø40 mm |
| 8t, 10t | 283 mm | 90 mm | 34 mm | 183 mm | Ø50 mm |
| Load Cell Type | Industrial load cell |
|---|---|
| Material | Alloy tool steel |
| Rated Output | 2.00 mV/V ± 0.1% |
| Accuracy Class | 0.03 |
| Environmental Protection | IP67 |
| Safe Overload | 150% F.S |
| Ultimate Overload | 300% F.S |
| Excitation Voltage | 10V AC/DC |
| Maximum Excitation Voltage | 15V AC/DC |
| Operating Temperature | -40°C to 65°C |
Additional information
| Capacity | 2t, 3t, 4t, 5t, 6t, 8t, 10t |
|---|
