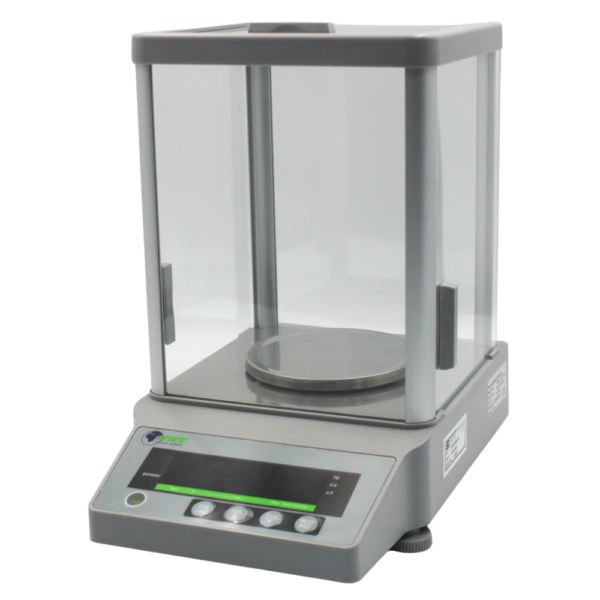

MK5103C Analytical Balance
The MK5103C Analytical Balance is a precision 1mg analytical balance with a 510 g capacity. It features a 3-door clear glass windshield, stainless steel platter, RS232/USB connectivity, and overload protection.
- Description
- Product Specifications
Description
The MK5103C Analytical Balance is designed for accurate laboratory and quality control weighing where fine readability is required. Its aluminium alloy die-cast base, stainless steel platter, and clear glass windshield help support stable weighing in controlled environments.
It includes a load cell sensor, green LED or white LCD display, multiple weighing units, piece counting, bubble level adjustment, and a universal power adaptor supplied as standard. The uploaded specification sheet confirms the MK Series 1mg analytical balance features and model capacity options.
Key Features
- 510g capacity
- 1mg readability
- Load cell sensor
- Aluminium alloy die-cast base
- Stainless steel platter
- Green LED / white LCD display
- RS232 and USB interfaces
- 3-door clear glass windshield
- Overload protection
- Bubble level adjustment
- Multiple weighing unit conversion
- Piece counting function
- Universal power adaptor supplied as standard
- Calibration weight supplied as standard
- Optional under-weighing hook
Applications
- Laboratory sample weighing
- Quality control testing
- Educational laboratory use
- Research and development weighing
- Precision material weighing
| Model | MK5103C |
|---|---|
| Product Type | Analytical balance |
| Capacity | 510g |
| Readability | 1mg / 0.001g |
| Base | Aluminium alloy die-cast base |
| Platter | Stainless steel platter |
| Display | Green LED / white LCD |
| Interfaces | RS232 and USB |
| Windshield | 3-door clear glass windshield |
| Dimensions | 280 × 180 × 280mm |
| Packing Size | 330 × 250 × 330mm |
| Gross / Net Weight | 3.5kg / 3kg |
