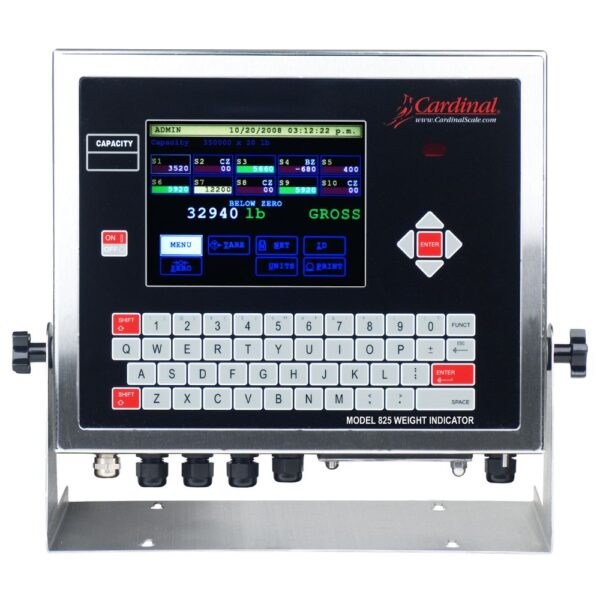

825 Spectrum Indicator
The 825 Spectrum Indicator is a full-colour touchscreen weight indicator designed for advanced industrial weighing systems. It offers IP66 protection, strong connectivity, truck ID storage, and support for up to 14 load cells per scale input board.
- Description
- Product Specifications
Description
The 825 Spectrum Indicator is built for demanding weighing operations that need a clear interface, flexible data handling, and reliable connectivity. Its full-colour 640 × 480 backlit touchscreen display, stainless steel enclosure, QWERTY keypad, and navigation keys make it suitable for complex weighing environments.
With 64 MB user memory, Ethernet, USB, serial communication, adjustable filtering, Gross, Tare and Net conversion, operator access, time and date functions, and unlimited truck storage IDs, the 825 Spectrum is ideal for truck scales, batching systems, industrial process weighing, and multi-scale applications.
Key Features
- Full-colour 640 × 480 pixel LCD touchscreen
- IP66 stainless steel enclosure
- 64 MB user memory
- Internet file management
- QWERTY keypad and navigation keys
- Gross, Tare, and Net conversion
- Adjustable filtering
- Time and date function
- Up to 8 operators can be programmed
- Unlimited truck storage IDs
- Ethernet, USB, RS232, RS485, and 20mA connectivity
- NTEP legal-for-trade and OIML certified
Applications
- Truck scale systems
- Industrial process weighing
- Batching systems
- Multi-scale weighing systems
- Weighbridge management
| Model | 825 Spectrum |
|---|---|
| Product Type | Touchscreen weight indicator |
| Enclosure | Stainless steel |
| Enclosure Rating | IP66 |
| Display | Full-colour backlit LCD touchscreen |
| Display Resolution | 640 × 480 pixels |
| Display Size | 133 × 102 mm |
| Memory | 64 MB user memory |
| Keypad | 52-key colour-coded membrane keypad with touchscreen soft keys |
| Load Cell Support | Up to 14 × 350-ohm load cells per scale input board, 48 total |
| Power Requirements | 90 to 264 VAC, 50/60 Hz |
|---|---|
| Weight | 7.3 kg, including gimbal |
| Operating Temperature | -10°C to 40°C |
| Operating Humidity | 90% maximum, non-condensing |
| Transducer Excitation | 10.85 VDC |
| Signal Input Range | 1.0 mV minimum to 33 mV maximum, with dead load boost |
| Internal Resolution | Greater than 100,000 counts |
| Tare Capacity | Six digits, 999,999 |
| Sample Rate | 1 to 200 samples per second, selectable |
| Auto Zero Range | 0.5 or 1 through 9 divisions |
